Lockton ELEV36 Smart Euro Lock – Hinge

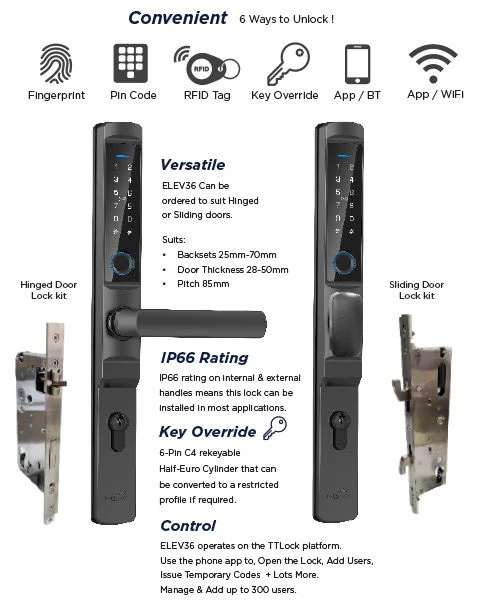

LOCKTON ‘E-Series’ Narrow Leverset Smart Door Lock with Fingerprint, Digital PIN Code, RFID Tag and Mobile App functionality.

• Designed for Hinged Door installations
• The ELEV36 – Smart Euro Mortice Lock has double point locking & retrofits existing mortice locks in the market.
• additional Lock Faceplate and Strike Plate options for retrofitting
• IP66 Rating on external handles means this lock can be installed in almost any application
• Key Override via 6-Pin C4 Rekeyable Half Euro Cylinder that can be converted to restricted profiles
• Lock is available in multiple backset sizes (25-70mm) ensuring a majority of existing installations can be upgraded
• Step by step instructions ensure ease of installation and operation
• Easily Use and Manage the lock via TTLOCK Phone App. Open the Lock, Add Users, Issue Temporary Codes and lots more
• Add up to 300 x Users
• Fingerprint sensing area is perfectly located within proximity of the lever to naturally read a thumb print for quick entry
• Deadbolt can be thrown by pulling lever handle up, giving the combined security of a latching lockset and a deadbolt in the one lock
• Optional G2 & G3 Gateway accessories allow for remote access and control of lock via internet

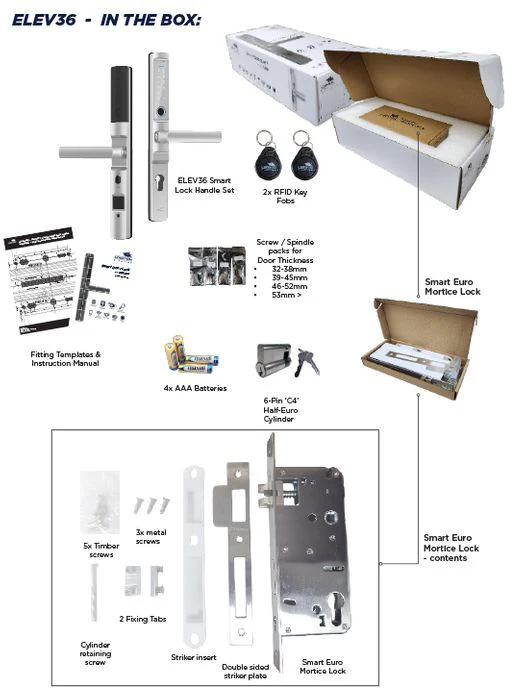

Lock is supplied with the following:

• 1 x ELEV36 Smart Lock Handle Set
• 2 x RFID Key Fobs
• 4 x Screw/Spindle Packs for varying door thicknesses
• 4 x AAA Batteries
• 1 x Smart Euro Mortice Lock (ordered to desired backset from dropdown)
• 1 x 6-pin C4 Half-Euro Cylinder
• 1 x Fitting Template
• 1 x Instruction Manual

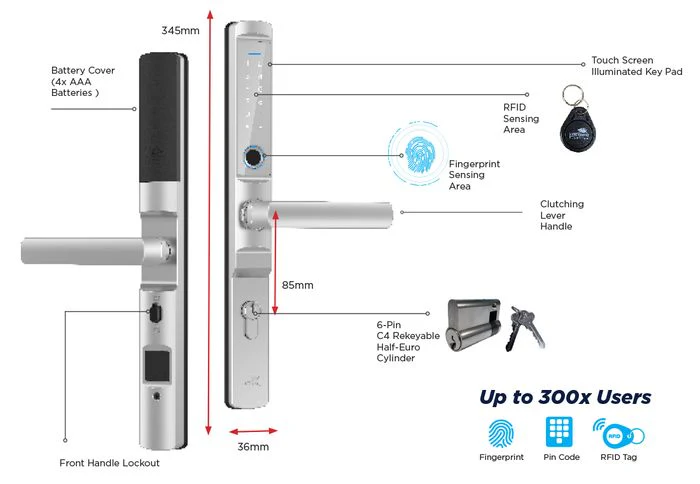

PRODUCT SPECIFICATION

• Available Finishes: Silver & Black
• Dimensions (L x W): 345 x 36mm
• Pitch: 85mm
• IP Rating: 66 both internal and external
• Lock Backset range: 25 – 70mm
• Suitable door thickness: 28 – 50mm
• Spindle Size: 8mm
• Handle Projection: 30mm
• Handle Length: 130mm
• Power Supply: 4 x AAA Alkaline Batteries
• Battery Life: Approx. 10,000 openings
• Safe Working Temperature: -20°C to 50°C
• 3 Year Warranty (*)
